Instrument Manufactures

We Service and Supply Process Plant Recording Equipment from:

Rototherm, Eurotherm, ABB-Taylor, Taylor Kent, Foxboro, Chessell

Process Instruments

The SM QUATTRO microprocessor-based datalogger with up to 12 fully sealed plug-in PT100 platinum film sensors suitable for air or liquid temperatures and uses the novel approach of a logging and filing system, which allows the data of any day in its history to be read and examined with just a few key presses.

The large graphics LCD display communicates the information to the user with clarity, making programming and setting-up friendly and uncomplicated, without compromising its sophistication and digital accuracy.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

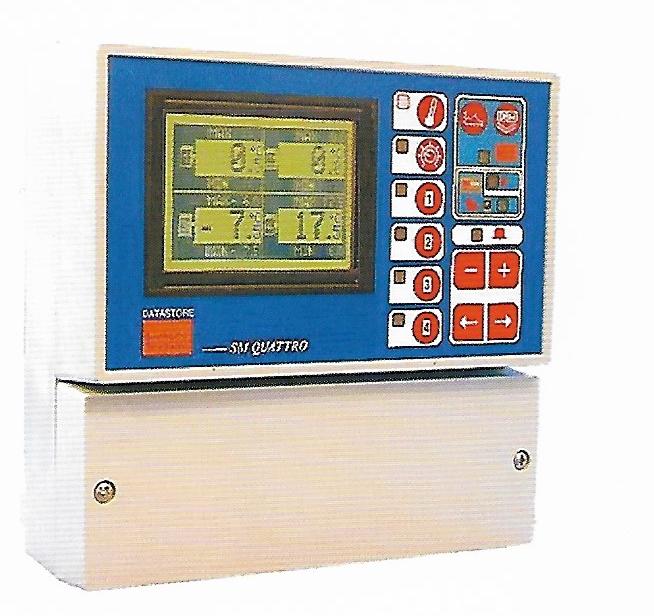

SM Quattro Datalogger

  • Datalogger with automatic filing by date - also able to be directly printed to paper as required.
  • 50-year clock/calendar for datalogger filing.
  • The temperature from each Channel is logged and stored to long-term internal memory which can be visually displayed or downloaded continually or whenever required.
  • 'Percentage of internal databank used' indication in bar graph and digital form.
  • 'Internal databank 98% full' indication to transfer contents to appropriate media.
  • Temperature range: +50°C / -50°C Standard (Extended range available).
  • Power Supply 220 - 240v ac Mains.
  • Contents of internal databank can be transferred directly to the PC using the MASTERLINK Software or via a MASTERLINK 2.0 Hardware module to a PC at a remote site, but can also go straight to a paper printer.
  • IP 55 sealed enclosure.
  • Complies with EU EMC 89/336/EEC directive.

Alarm Functions

  • 2-Stage high and low level alarms with mute and reset facilities:
  • Stage I temperature threshold with trigger delay.
  • Stage 2 limit temperature with immediate trigger.
  • Status -window for system fault indication.
  • Diagnostics screen revealing system parameters.
  • Alarm history record for low alarm, high alarm and power fail.
  • Alarm relay for external device.
  • Battery back-up for power-fail operation.
  • Door open alarm - with timer
